DFMEA vs. PFMEA: Understanding the Differences and Their Impact on Manufacturing Quality

Design Failure Mode and Effects Analysis (DFMEA) is a proactive risk assessment technique focused on identifying potential failure modes in product design before they even reach the production floor. It's about asking "What could go wrong with this design?" and then mitigating those risks early on.

Objectives:

• Improve design robustness: Create designs that are less susceptible to failures under various conditions.
• Ensure products meet performance requirements: Verify that the design meets all specified functional and performance criteria.
• Reduce design-related recalls and warranty claims: Identify and address potential issues before they become widespread problems in the field.

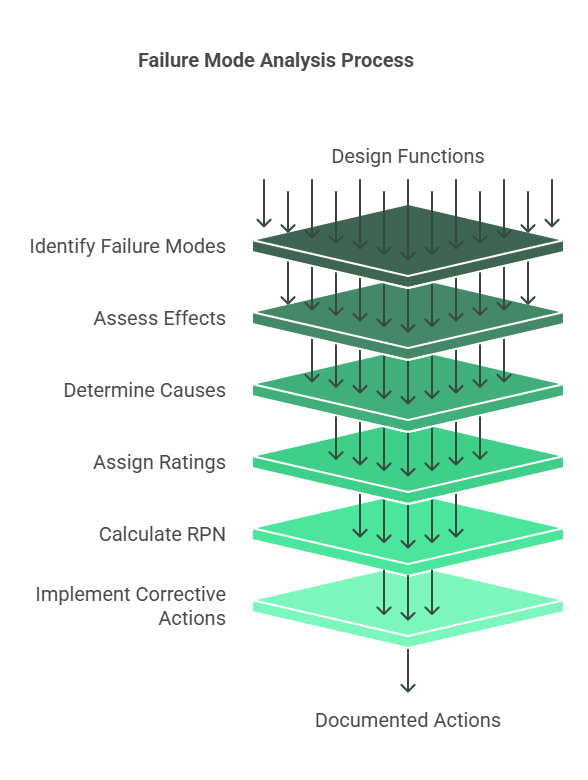

Process Overview:

1. Identify design functions: Define the intended functions of the product and its components.
2. Identify potential failure modes: Determine how each function could potentially fail (e.g., component breaks, malfunctions, doesn't meet specifications).
3. Assess the effects of failure: Evaluate the potential consequences of each failure mode (e.g., customer dissatisfaction, safety hazard, system shutdown).
4. Determine causes of failure: Identify the underlying causes that could lead to each failure mode.
5. Assign severity, occurrence, and detection ratings: Quantify the risk associated with each failure mode based on its severity, likelihood of occurrence, and probability of detection.
6. Calculate Risk Priority Number (RPN): Multiply the severity, occurrence, and detection ratings to obtain an RPN score.
7. Develop and implement corrective actions: Focus on addressing failure modes with high RPN scores by implementing design changes or preventive measures.
8. Document and track actions: Record all findings, actions, and outcomes for future reference.

Process Failure Mode and Effects Analysis (PFMEA) shifts the focus from product design to the manufacturing and assembly processes used to create the product. It asks, "What could go wrong during production?"

Objectives:

• Optimize process reliability: Ensure that the manufacturing processes are stable and consistent.
• Prevent defects during production: Minimize the occurrence of errors and deviations in the manufacturing process.
• Reduce scrap and rework: Identify and eliminate sources of waste in the production process.

Process Overview:

1. Map process steps: Define all the steps involved in the manufacturing process, from raw material input to finished product output.
2. Identify potential failures: Determine how each process step could potentially fail (e.g., machine malfunction, operator error, material defect).
3. Assess the effects of failure: Evaluate the potential consequences of each failure mode on the finished product (e.g., dimensional inaccuracy, functional failure, cosmetic defect).
4. Determine causes of failure: Identify the underlying causes that could lead to each failure mode (e.g., inadequate training, improper tooling, variations in material properties).
5. Assign severity, occurrence, and detection ratings: Quantify the risk associated with each failure mode based on its severity, likelihood of occurrence, and probability of detection.
6. Calculate Risk Priority Number (RPN): Multiply the severity, occurrence, and detection ratings to obtain an RPN score.
7. Develop and implement corrective actions: Focus on addressing failure modes with high RPN scores by implementing process improvements or preventive measures.
8. Document and track actions: Record all findings, actions, and outcomes for future reference.

While both DFMEA and PFMEA are powerful tools for risk assessment, they differ significantly in their focus, timing, and team composition:

The real power of FMEA comes when DFMEA and PFMEA are integrated into a comprehensive quality management system.

• Sequential Implementation: Ideally, DFMEA should be conducted before PFMEA. Addressing design issues early on prevents them from becoming process-related problems later.
• Continuous Improvement: Both methodologies should be viewed as part of a continuous improvement cycle. Regularly review and update FMEA analyses to reflect changes in design, processes, and operating conditions.

DFMEA Benefits:

• Enhances product quality and reliability.
• Reduces design-related failures and associated costs.
• Shortens product development time.
• Improves product safety.

PFMEA Benefits:

• Improves process efficiency and stability.
• Decreases production defects and rework.
• Reduces manufacturing costs.
• Enhances process safety.

Fabrico CMMS isn't just for maintenance; it's a powerful platform for supporting your entire quality management system, including FMEA processes.

• Data Management: Fabrico CMMS facilitates the documentation and tracking of FMEA findings, actions, and outcomes in a centralized repository. This ensures that critical information is readily accessible to all team members.
• Collaboration: The system enables cross-functional teams to collaborate effectively during FMEA activities by providing shared workspaces, communication tools, and version control.
• Risk Mitigation: Fabrico CMMS can be used to monitor and mitigate identified risks through maintenance and process controls. Schedule preventive maintenance tasks to address potential failure modes and track the effectiveness of corrective actions.
• Reporting & Analytics: Fabrico CMMS provides reporting tools to analyze FMEA data, identify trends, and track the effectiveness of implemented solutions. Leverage this data to drive continuous improvement initiatives.

Many companies have benefited from implementing DFMEA and PFMEA, but using Fabrico CMMS will optimize and streamline your processes. Automate your workflow and processes by using Fabrico CMMS today.

Conclusion

Understanding the nuances between DFMEA and PFMEA is crucial for manufacturers seeking to improve product quality, enhance process efficiency, and minimize risk. By integrating these methodologies into a comprehensive quality management system, and leveraging the power of Fabrico CMMS, you can build a culture of continuous improvement and achieve world-class performance.
